Outdoor Parallel Steel Wires
Description:

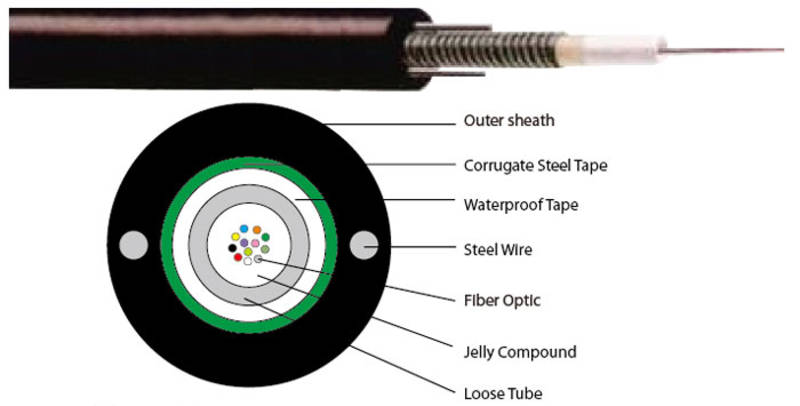

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Between the corrugated steel tape and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the corrugated steel tape. The cable is completed with a PE or LSOH sheath
Features:
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- Steel tape enhancing moisture-proof
- Two parallel steel wires ensure tensile strength
- Small diameter, light weight and friendly installation
Compliances:
- ITU-T G651 / G652D
- ANSI/TIA 568-C.3
- IEC-794
- RoHS
Applications:
- Suitable for direct buried, aerial or duct installation
Ordering information:
Part No. 2671xyzzz
Description Premium Line fiber optic outdoor cable, steel armored with two parallel steel wires strength, uni-tube
x, mode 1: MM 62.5/125 2: SM 9/125 3: MM 50/125 4: MM/OM3 9: MM/OM4
y, sheath 2: LSOH 3: MDPE 6: HDPE
zzz, fiber count 002 / 004 / 006 / 008 / 012 / 016 / 024
Für mehr Informationen klicken Sie auf das „+“
- Structure & Environmental Characteristics:
Loose Tube Material PBT Peripheral Strength Member Material Steel Wire Diameter 1.0 mm Wrapping Material Waterproof Tape Moisture Barrier Material Corrugated Steel Tape Sheath Material / Color PE/LSOH, black Installation Temperature -40oC to +70oC Operation Temperature -40oC to +70oC Storage/Transport Temperature -40oC to +70oC - Mechanical Characteristics:
Fiber Count Outside Diameter (mm)
Cable Weight (kg/km) Tensile Load(Min.) Crush Load Bend Radius Short term (N)
Long term (N)
Short term (N) Long term (N) Static (mm)
Dynamic (mm) 2C 8.7±0.5mm 82 1500 600 1000 300 10D 20D 4C 8.7±0.5mm 82 1500 600 1000 300 10D 20D 6C 8.7±0.5mm 82 1500 600 1000 300 10D 20D 8C 8.7±0.5mm 85 1500 600 1000 300 10D 20D 12C 8.7±0.5mm 90 1500 600 1000 300 10D 20D 16C 11.5±0.5mm 104 1500 600 1000 300 10D 20D 24C 11.5±0.5mm 124 1500 600 1000 300 10D 20D - Fiber Color Code:
No. of fiber 1 2 3 4 5 6 Color of fiber Blue Orange Green Brown Grey White No. of fiber 7 8 9 10 11 12 Color of fiber Red Black Yellow Violet Pink Aqua No. of fiber 13 14 15 16 17 18 Color of fiber Blue/ Orange/ Green/ Brown/ Grey/ White/ Black Tracer Black Tracer Black Tracer Black Tracer Black Tracer Black Tracer No. of fiber 19 20 21 22 23 24 Color of fiber Red/ Neutral/ Yellow/ Violet/ Pink/ Aqua/ Black Tracer Black Tracer Black Tracer Black Tracer Black Tracer Black Tracer - Optical Performance:
Wavelength 9/125 μm 50/125μm 62.5/125μm 50/125μm (OM3) 50/125μm(OM4) Max. Attenuation dB/km
850 / 1300nm — £ 3.2 / £ 1.2 £ 3.2 / £ 1.2 £ 3.2 / £ 1.2 £ 3.2 / £ 1.2 1310 /1550nm £ 0.36 / £ 0.22 — — — — Minimium Bandwidth MHz‧km 850 / 1300nm — 500 / 500 200 / 500 1500 / 500 @ LED 3500 / 500 @ LED 2000 / 500 @ Laser 4700 / 500 @ Laser - Packing information:
- cable be wound on an iron stand-wooden composite
- standard drum length is 2000m ±1%
- covered by a plastic buffer sheet
- sealed by strong wooden battens
- at least 1m of the inner end of the cable should be reserved for testing
- test protocol at the side of the drum
- Ordering Information Examples
Fibers 9/125 50/125 62.5/125 50/125(OM3) 50/125(OM4) 4 267123004 267133004 267113004 267143004 267193004 6 267123006 267133006 267113006 267143006 267193006 8 267123008 267133008 267113008 267143008 267193008 12 267123012 267133012 267113012 267143012 267193012 24 267123024 267133024 267113024 267143024 267193024
