Wall Net Line Cabinet

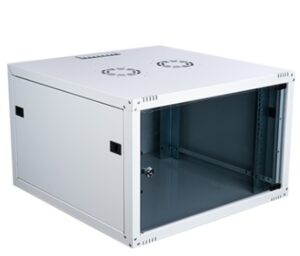

Premium-Line Wall Net Line Cabinet W:600mm
Features:
- Monoblock foldable main body
- Hinged, removable and lockable glass front door, t:4mm
- Removable and lockable side panels
- Optional fan-unit into the roof or 19inch rack mount type fan unit
- Vertical mounting rails are adjustable 4 step throughout the entire depth of the cabinet.
- Load carrying capacity 45kg
Technical Data:
| Dimensions WxD in mm | W:600mm D:450/600mm |
| Height in U | 7U – 9U – 12U – 16U |
| Color | RAL 7035 L.gray color or RAL 9005 Black color |
| Grounding continuity | EN61587-1/ EN61010-1 |
| Standards | TS EN 61587-1 |
| Part No. | Description | Width (W) mm | Depth (D) mm | H:1 Inner Height (mm) | H:2 Out Height (mm) | H:3 Wall Mounting Hole Distance |
| 611fr6d07z-TW | Wall Net Line Cabinet 19″ 7U W=600 mm | 600 | 450/600 | 311 | 380 | 300 |
| 611fr6d09z-TW | Wall Net Line Cabinet 19″ 9U W=600 mm | 600 | 450/600 | 400 | 469 | 389 |
| 611fr6d12z-TW | Wall Net Line Cabinet 19″ 12U W=600 mm | 600 | 450/600 | 533 | 602 | 522 |
| 611fr6d16z-TW | Wall Net Line Cabinet 19″ 16U W=600 mm | 600 | 450/600 | 711 | 780 | 700 |
Mechanical Characteristics:
| Material | Sheet Steel, DIN EN 10130-99 / DC-01 6112 / DC-7122 |
| Load Carrying Capacity | 45kg |
| IP rating | IP20 |
| Climatic Tests | C2 |
| Industrial Atmosphere | A2 |
| Static Mechanical Load Class | SL5 -LT5 -ST5 -NL5 |
| Dynamic Mechanical Load Test | DL4V |
| Shock test | DL4S |
| Impact test | IK07 |

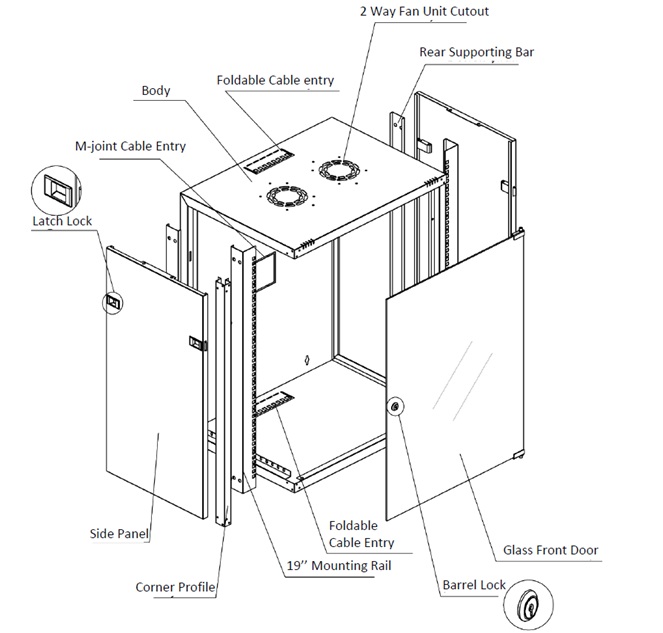

Explode View:

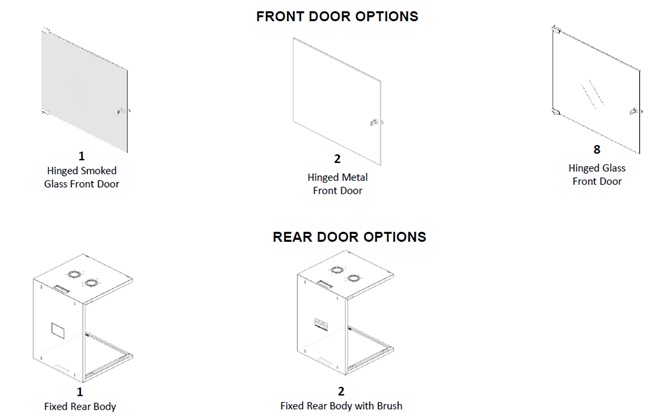

Optional Doors:
Ordering Information:
| Part No. | 611fr6dyyz-TW |
| Description | WALL NET Line Cabinet W:600mm, removable side panels |
| f, front door | 1 – Hinged Glass Opening Front Door Metal Side Frames; etc |
| r, rear door | 1 – Fixed Rear Body; etc. |
| d, depth | 4 – 450mm; 6 – 600mm |
| yy, height in Units (U) | 07-7U;09-9U;12-12U; 16-16U |
| z, color/packing | 2 – RAL 9005 Black color; 5 – RAL 7035 L.gray color |
