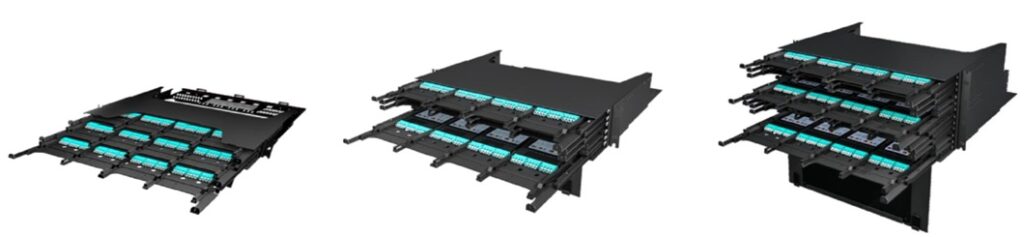

FO HDS144 Patch Panel 1-4U
FEATURES:
- Suitable for 1U/144F LC, 2U/288F LC, 4U/576F LC
- Standard 19” Patch Panel

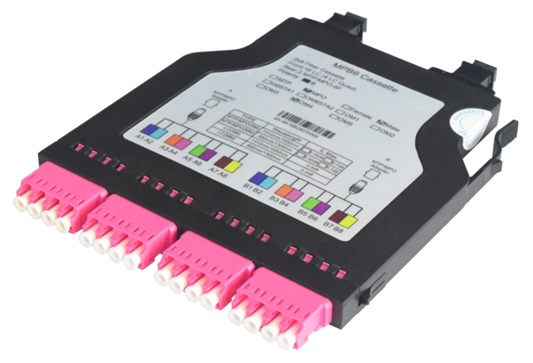

- Suitable for MPO/MTP to LC or MPO/MTP cassette (P/N 68auvwxyz)
- Independent plug-in cassette, can be pulled out by rails
- Each floor can install 2/3/5/4/6 cassettes
- Provides front and rear cable management functions
- Support MTP/MPO-MTP/MPO conversion
- Optional MTP/MPO/LC connection
- Support pigtail splicing
- RoHS compliant
APPLICATIONS:
- Data center, data communication network
- Telecommunications, CATV
- Local Area Network, FTTx deployments
- Provide termination, protection, connection, and management of fiber optic cable
SPECIFICATION:
| Cabinet Material | Cold Rolled Steel Plate |
| Relative Humidity | ≤85%(+30°C) |
| Atmospheric Pressure | 70kPa ~ 106kPa |
| Dimensions(WxDxH) | 482.8mm×350mm×1/2/4U (With tailgate:497mm) |
| Operating Temperature | -40°C ~ +75°C |
| Storage Temperature | -40°C ~ +75°C |
| Note: 1. Each panel can be configured with 6pcs 8F cassettes or 4pcs 12F cassettes or 3pcs 16F cassettes or 2pcs 24F cassettes. 2.1U can be configured with 3 layers of panels, 2U with 6 layers, and 4U with 12 layers. | |

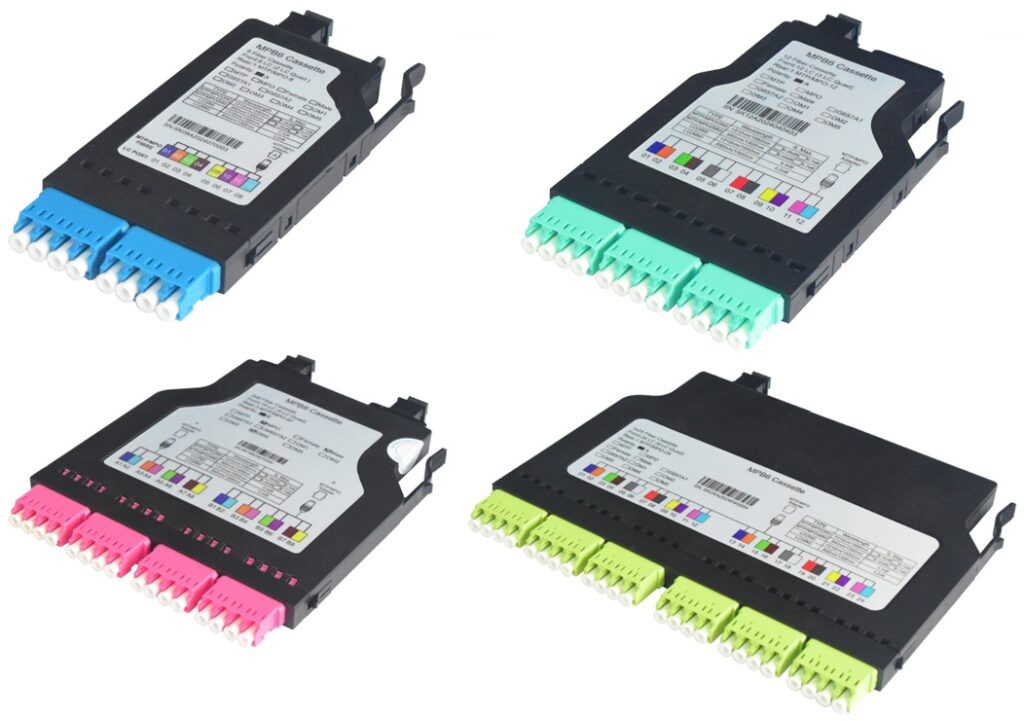

CASSETTE TYPES
ORDERING INFORMATION:
| Part No. | 681a00002 |
| Description | Premium-Line Description 19” HDS144 FO high density patch panel, main body, without cassettes |
| a, size | 1: 1U 2: 2U 4: 4U |
