Cassette for HDS144
Cassette for HDS144 FO High Density Panel
FEATURES:
- Simple to use, convenient installation
- Improve cable manageability
- Suitable for 19” HDS144 Fiber Optic High Density patch panel（P/N 681a00002）
- Unloaded and fully loaded are optical
- Various connectors are optional
- Material: plastic
- RoHS compliant
APPLICATIONS:
- Data center
- Telecommunications
- Local Area Network
- FTTx deployments
- Data communication network
- CATV
- Provide termination, protection, connection, management of fiber optic cable
OPTICAL PROPERTIES:
| Maximum cable attenuation | SM | ≤0.4dB/km at 1310nm |
| ≤0.3dB/km at 1550nm | ||
| Maximum cable return loss | MM | ≤3.0dB/km at 850nm |
| ≤1.0dB/km at 1300nm | ||
| Maximum connector Insertion loss | SM (Low/Elite Type) | MPO/MTP: ≤0.35dB LC: ≤0.3dB |
| MM (Low/Elite Type) | MPO/MTP: ≤0.35dB LC: ≤0.2dB | |
| Maximum connector return loss | SM | MPO/MTP/LC/APC: ≥60dB MPO/MTP/LC/UPC: ≥50dB |
| MM | MPO/MTP/LC: ≥35dB |
ORDERING INFORMATION:

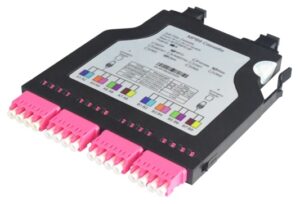

#1, MPO/MTP-LC
| Part No. | 682uvwxy2 |
| Description | Cassette for HDS144 FO Panel MPO/MTP to LC |
| u, mode | 1: OM3 2: OM4 5: G657A2 |
| v, front connector | 3: LC-Quad/UPC 4: LC-Quad/APC |
| w, rear connector | 0: 1×8MPO 1: 1×12MPO 2: 1×16MPO 3: 1×24MPO 4: 2×12MPO 5: 1×8MTP 6: 1×12MTP 7: 1×16MTP 8: 1×24MTP 9: 2×12MTP |
| x, polish, fe/ma | 1: UPC, female 2: UPC, male 3: APC, female 4: APC, male |
| y, polarity method | 1: type A 2: type B 3: type C 4: type U |

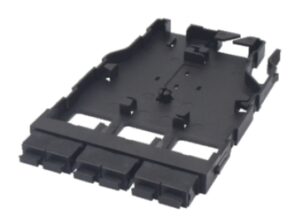

#2, MPO/MTP
| Part No. | 683000xy2 |
| Description | Cassette for HDS144 FO Panel MPO/MTP to MPO/MTP, with duplex adapter loaded |
| x, port | 1: 2ports 2: 3ports 3: 4ports 4: 6ports |
| y, connector type | 1: type A 2: type B |
#3, Splice Type
| Part No. | 684x000y2 |
| Description | Cassette for HDS144 FO Panel Splice type, with LC quad adapter loaded |
| x, mode | 1: OM3 2: OM4 3: OM5 4: SM/UPC 5: SM/APC |
| y, port | 2: 3ports(12cores) 3: 4ports(16cores) 4: 6ports(24cores) |
